Features:
1. Supports mixed input of multiple video formats including AHD1080P/960P/720P and 960H/CVBS;
2. Support PAL/NTSC mixed input of different formats for AHD/CVBS video signals (adaptive);
3. Each input video signal can independently set brightness, contrast, saturation, chromaticity, and sharpness; Can independently set left and right mirror function and up and down flip function;
4. Video output, which can set the zoom display of the top, bottom, left, and right margins so that different display screens on the market can be fully displayed without being cut or deleted;
5. Support parking stall delay recording (24-hour parking monitoring function);
6. Supports a maximum of 512GB storage card and ultra long panoramic image memory, making it convenient for users to access at any time:
7. Independent four-way display function, automatically switches display screens when turning or reversing;
8. The panoramic monitoring records images with controllable playback function for instant viewing:

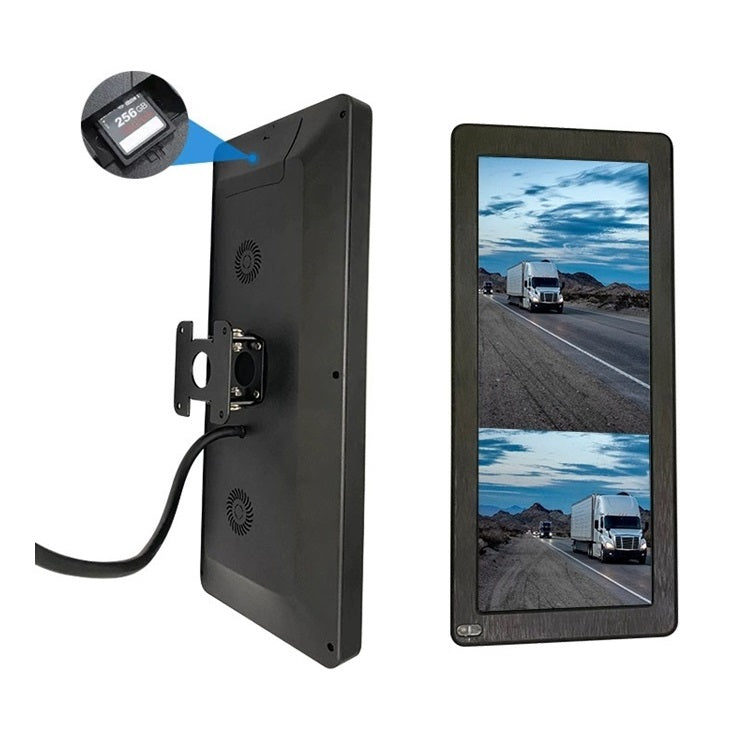

Monitoring:

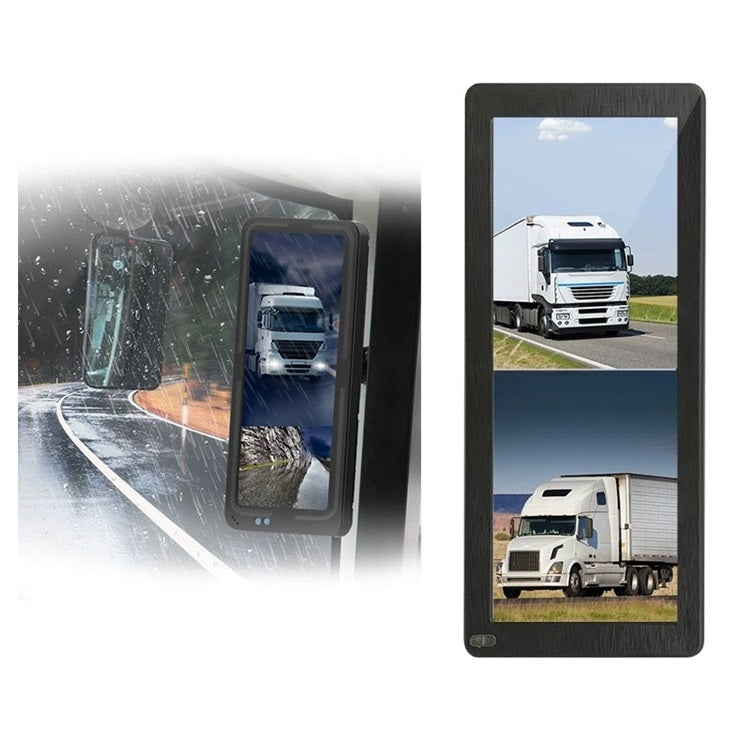

Screen size: 12.3 inches (8:3)
Resolution: 1920RGB * 700 pixels
Standard: PAL/NTSC
Luminous output: 500cd/m ^ 2
Brightness: DV10V~36V
Power: Approximately 5 watts
Working temperature: -20 ° C~70 ° C
Storage temperature: -30 ° C~+80 ° C

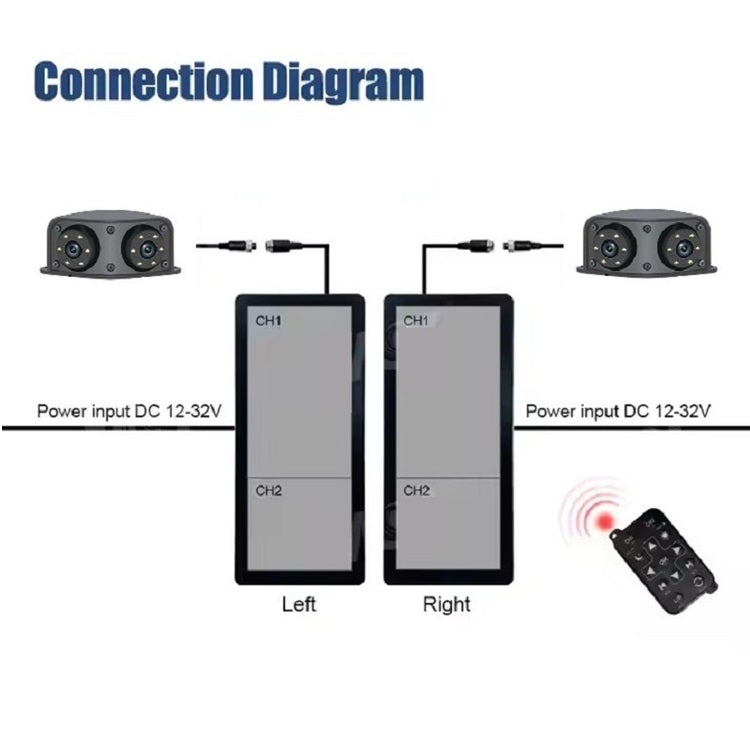

Video: Two video inputs, two recordings, V2 control cable
Video format: CVBS/1080P/720P
Operation modes: button mode, remote control mode
SD card: Supports up to 256g
Dimensions: 322 * 145 * 30mm

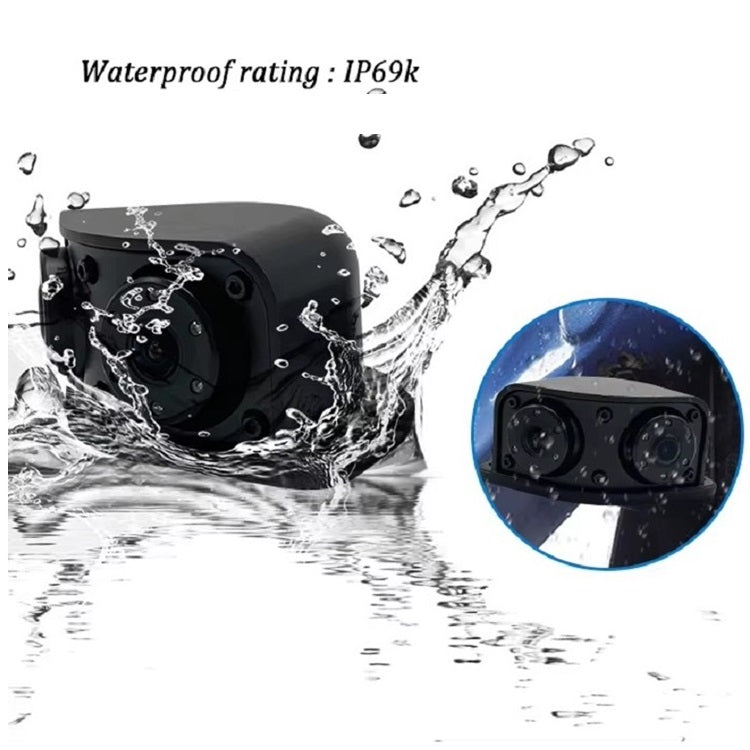

Camera:
Imaging Device: 1/2.9 AHD 200W 2053
Effective pixels: 1920 (H) * 1080 (V)
System format: PAL/NTSC (OSD switching)
Day and night mode: external control (default)/automatic/color/black and white (OSD switching)
Horizontal resolution: 1080P
Signal to noise ratio: ≥ 45db
Minimum illumination: 0.1LUX
Backlight compensation (BLC): automatic/AUTO
Automatic Electronic Shutter (AES): AUTO/1/25-1/100000sec
Automatic White Balance (AWB): Automatic White Balance (AWB)
Working voltage: DC12V+/-15%
Working environment: -20 ℃ -70 ℃, humidity less than 95% (no condensation)
Power consumption current: 100mA
Field of view angle: 140 degrees

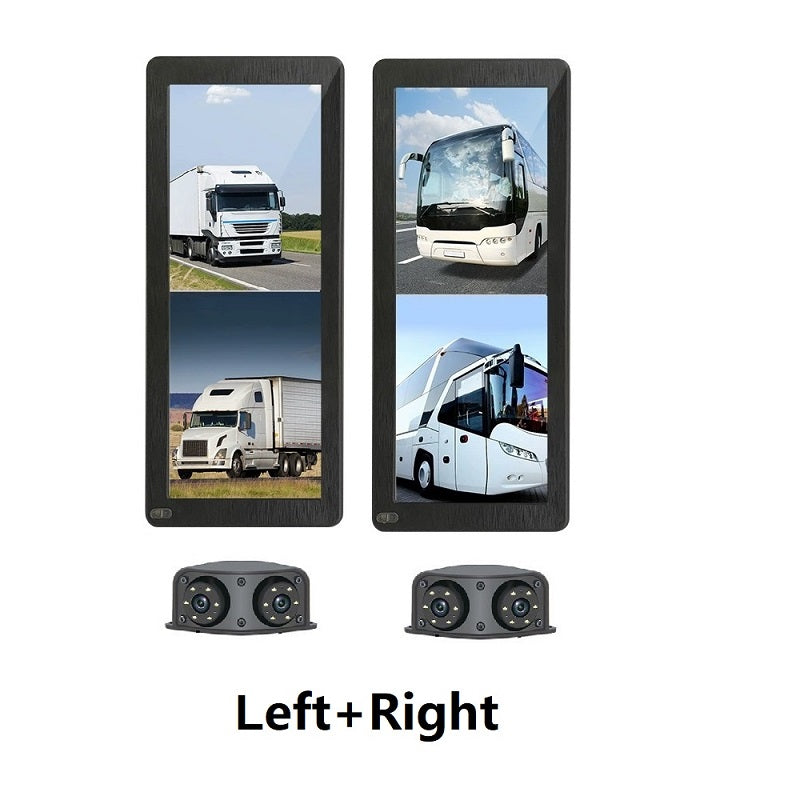

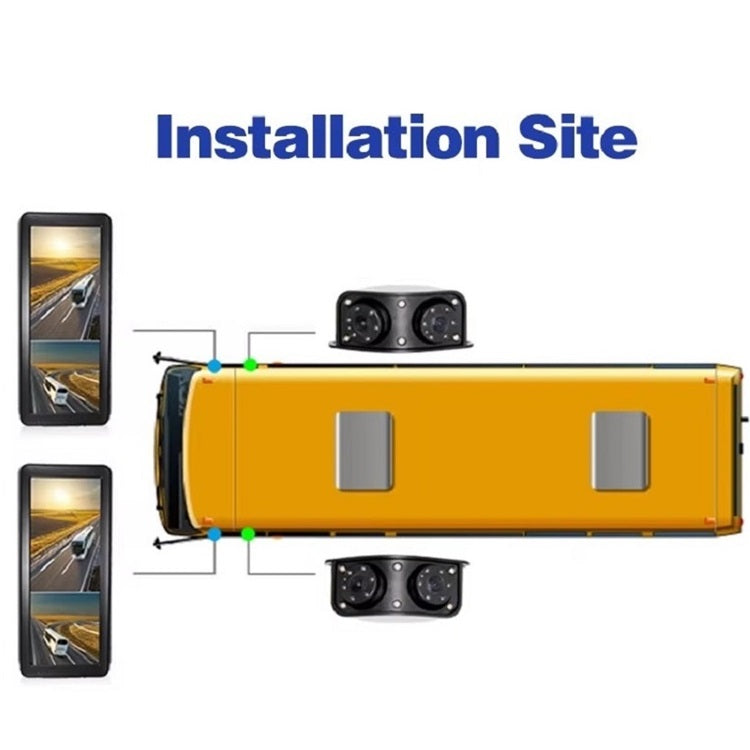

Note：the package contains two displays and on the left and right sides. If you only have one side, please let us know, thanks!
