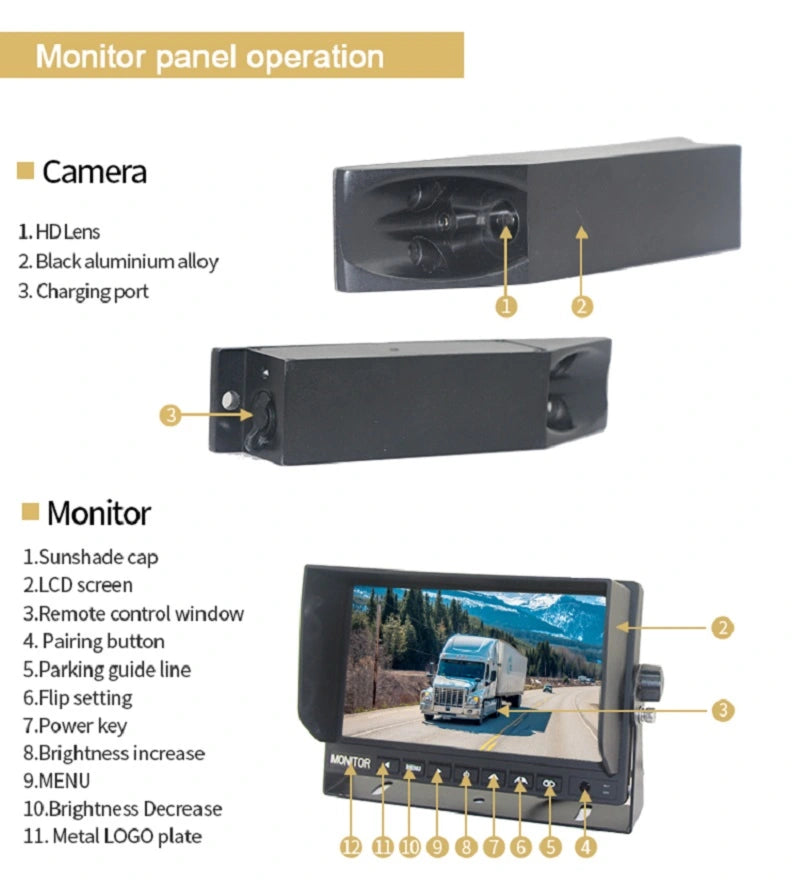

Monitoring:

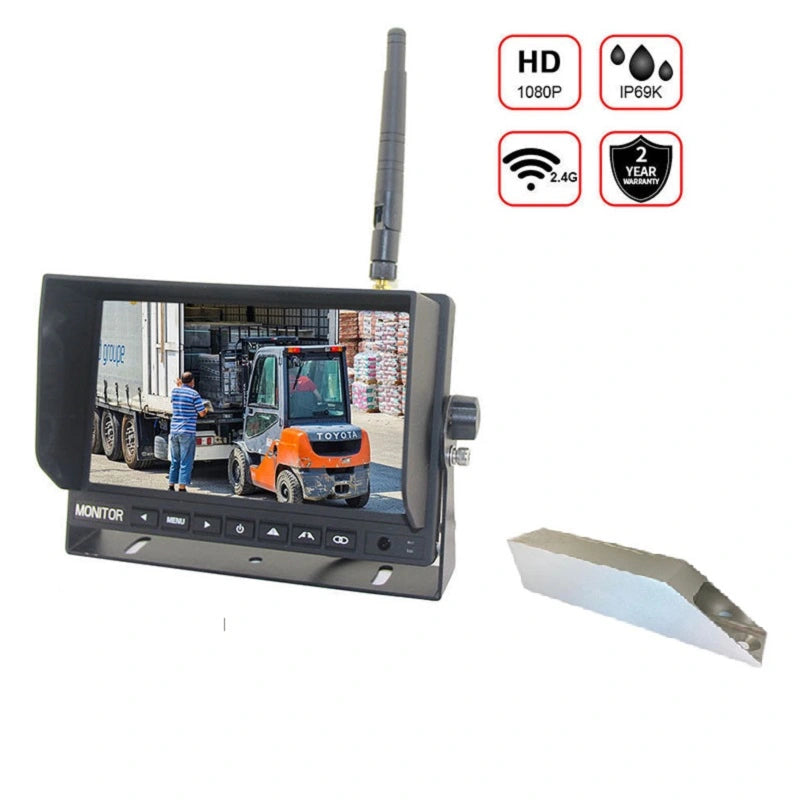

7-inch brand new digital LCD display (16:9)
PAL/NTSC system compatible
Image resolution: /AHD 1024xRGBx600
Brightness: 450cd/m²
Contrast: 500:1
Language: 8 multi-language
Image display: single/dual/quadruple
Support DVR recording function
Full-function infrared remote control
Power supply: 7W

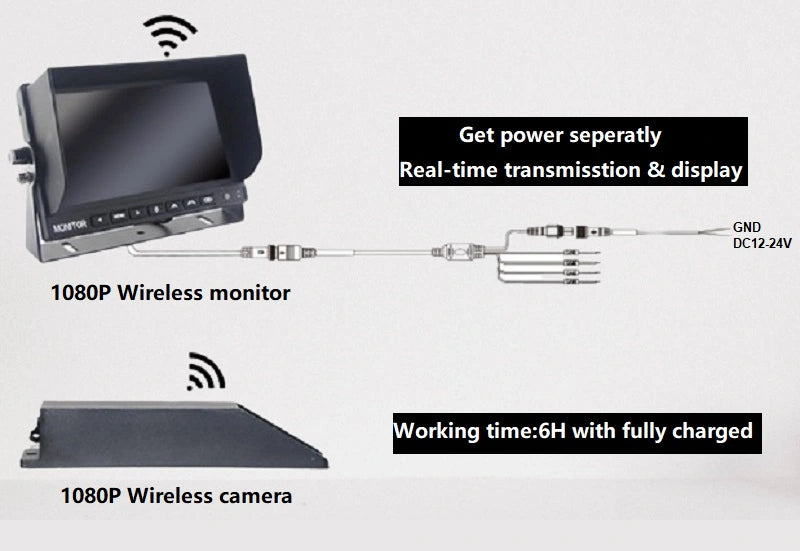

Working voltage: DC12V-DC32V (for 12v or 24v forklifts)
Maximum support: 128G sd card
Transmission distance: 1CH 250M/4CH 150M
Working frequency range: 2400 ~ 2483.5MHZ
Transmission power:20dBm
Built-in parking guide line
OSD menu for setting camera image normal or mirror/upper and lower image switch
Operating temperature: -20°c to +70°c 85% relative humidity
Storage temperature: -30°c to +85°c85% relative humidity

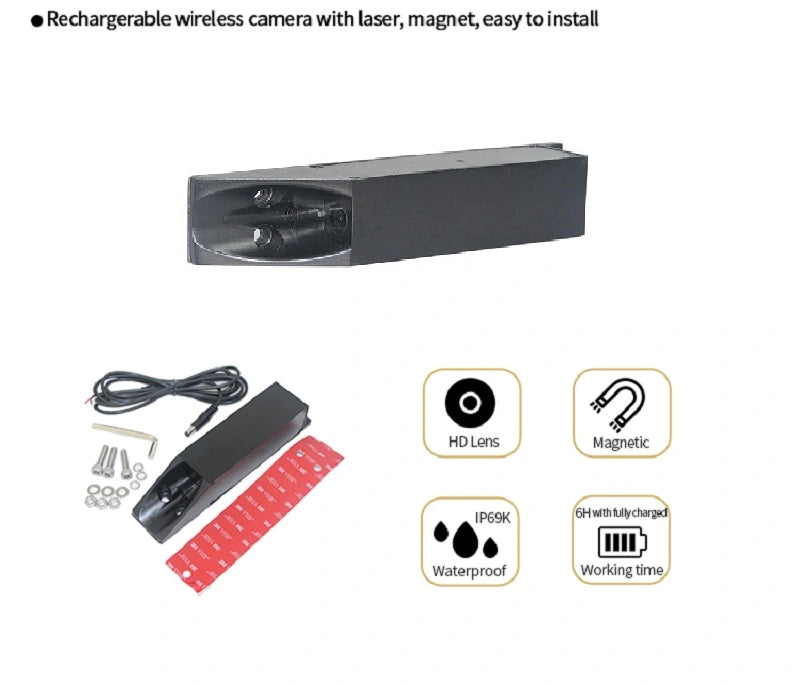

Camera:
IP level: IP69
Image sensor: HD AHD 1080P option
TV system:PAL/NTSC
Effective pixels:1920(H)*1080(V)
Horizontal angle (degrees.): 60 AHD
Operating frequency range: 2400~2483.5MHZ
Power supply: (DCV)12-24v
Transmitting distance: 1CH 250M/4CH 150M
With 3pcs LED for picture in the dark support
Night vision: 3M
Anti-shock: Max 17.3G
Min No. (Lua/F1.2)0Lux
Horizontal Sync.Frequency (KHZ) 15.625/15.734
Vertical Sync.Frequency (HZ) 50/60
Video Output: 75 ohms
Consumption: 0.45
AGC: Auto
BLC: Auto
SNR: Better than 48dB
Lens: F = 1.9mm/F = 2.0
Alloy Housing/Waterproof/Silver/Black
Working Temperature (Celsius): -20 + 70 (RH95% Max)
Storage Temperature (Celsius): -30 + 80 (RH95% Max)
Camera Size 121x40x40mm
Solar power bank:
Capacity: 9600mAh
Working Time: 12 hours
Package：
7 inch HD HD IPS screen *1
HD Forklift Camera*1
Antenna*2
Power cord*2
User Manual*1
Power bank*1
