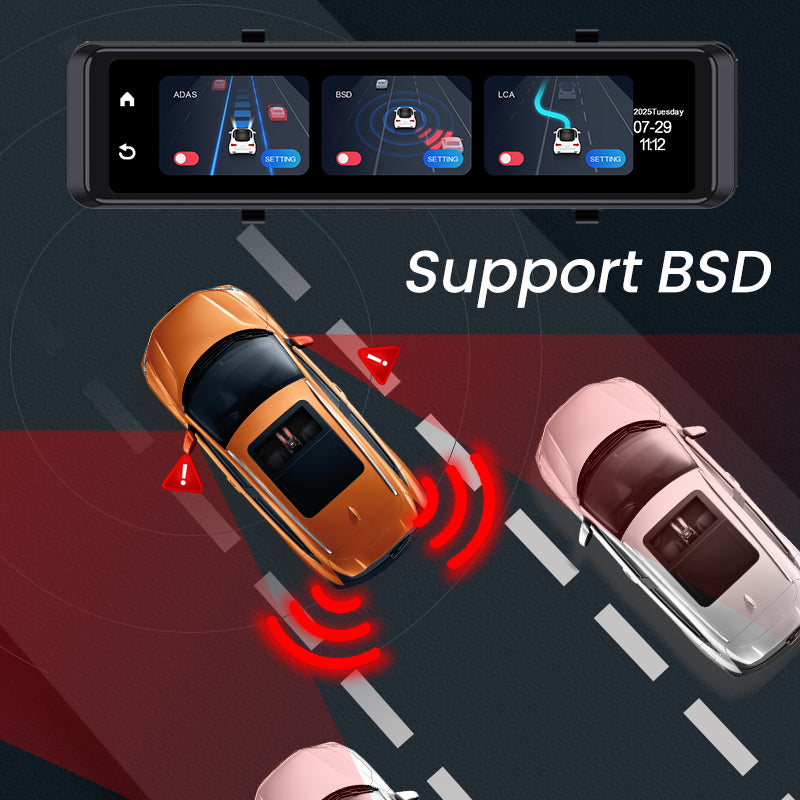

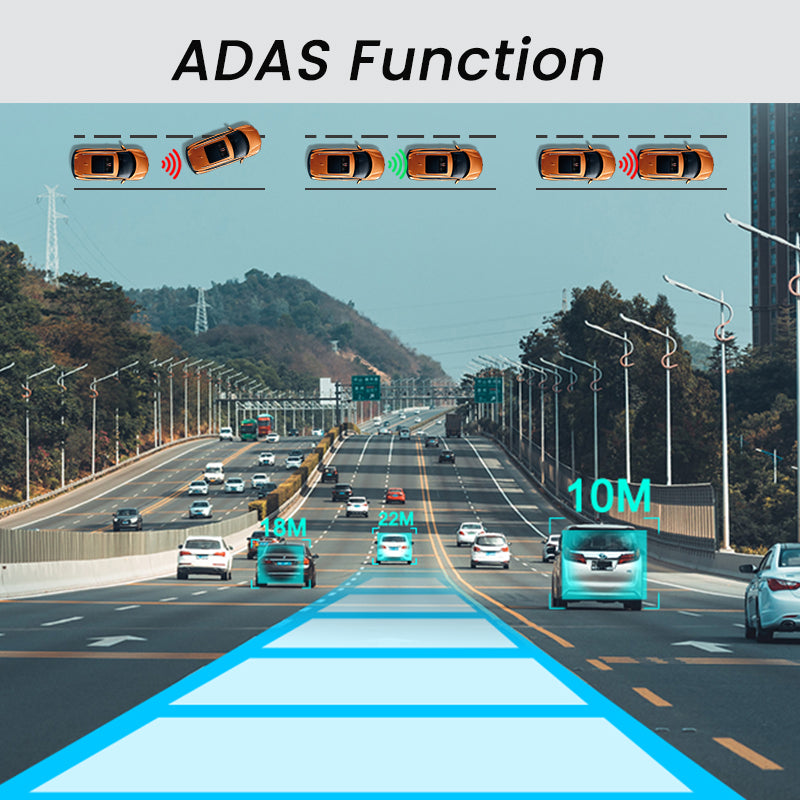

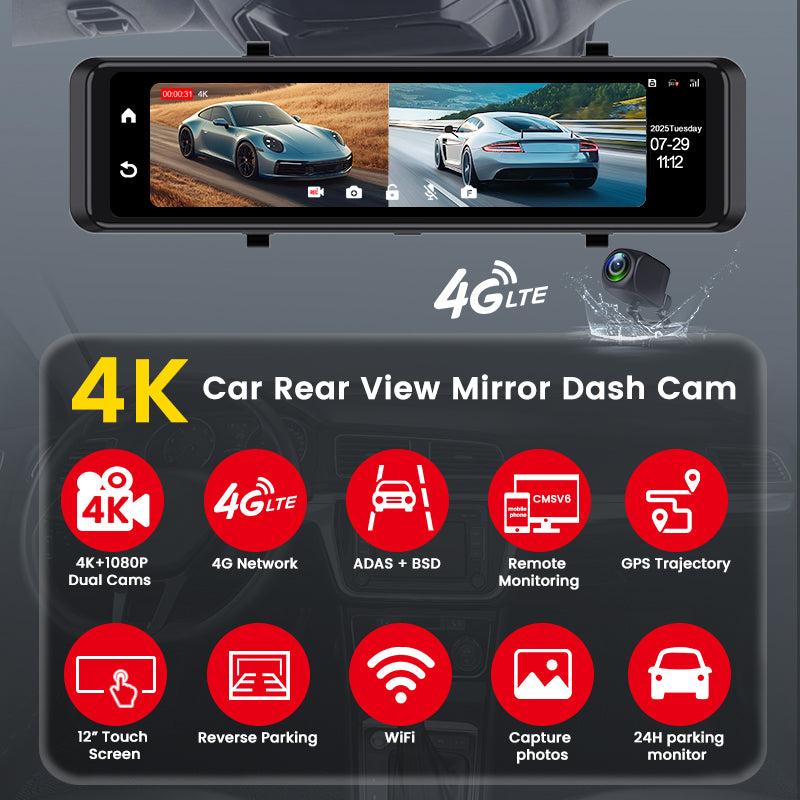

Video processor: SA230D Arm Cortex-A7 CPU +RISC-V CPU DDR:1GB DDR3L 4G module: Quectel EC800K Memory: ROM 512MB RAM 128MB Satellite positioning: external passive GPS + Beidou dual-mode antenna Display: 11.26 inch IPS screen resolution 1920*440 MIPI interface Operating system: Linux 4G bands: WCDMA: B1, B5, B8; FDD-LTE: B1, B3, B5, B8, TDD-LTE: B38, B39, B40, B41 Front camera: 4K/3840*2160, S/25 frame wide angle 140 degrees Rear camera: 1K/1920x1080, S/25 frame wide angle 130 degrees Remote monitoring: support mobile phone APP remote live broadcast, remote playback/taking pictures, remote formatting of TF card, remote restart BSD blind spot monitoring: support ADAS: Support Driving track playback: support Video file viewing and downloading: Support viewing the video recorded in the TF card and downloading the video file to the mobile phone G-Sensor: 3-axis, support loop recording Parking monitoring: 3-axis G-sensor sensor, support parking monitoring Video compression standard: H.264 code Video format: ts format Time-lapse recording: support 12 hours and 24 hours Rear view: support Software upgrade: Support software update through TF card, OTA online upgrade Storage: TF card supports up to 512GB Microphone: Built-in highly sensitive microphone Speaker: Built-in high-fidelity mono 1.5W/8R speaker Buttons: 2 buttons Reset function: support Power supply: DC12V, Type-C plug input voltage 12V, support a wide voltage range of 12~24V ACC: Support ACC detection Working environment: -20℃～+70℃ Storage temperature: -30℃～+80℃
